Points You Must Observe To Assure Product Safety

原装爱普生M-T532IIAP热敏打印头BA-T500IIU热敏打印机控制板

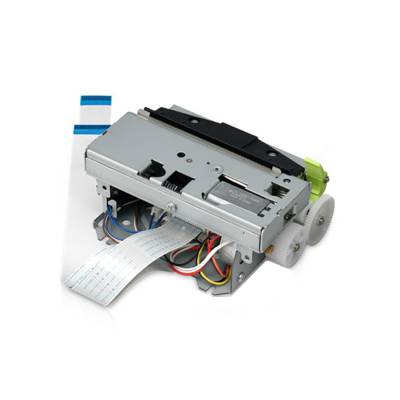

EPSON M-T532AP/AF.EPSON M-T532IIAP/AF.EPSON BA-T500IIU

In order to assure the safe operation of this product, carefully observe the specifications as

well as the notes provided below.

Seiko Epson Corporation will not bear any responsibility for any damage or injuries arising

from use of this product that is not in accordance with the specifications and the notes

provided below.

Notes on Head Control

1. Maximum Absolute Voltage

1) Drive voltage: DC 26.4 V or less

(Print head, paper feed motor, and cutter motor)

2) Circuit voltage: DC 5.25 V or less

(Print head control circuit, paper-end sensor, platen open sensor, black mark sensor, and cutter

reset sensor)

2. The conditions setting forth the maximum time power can be applied (and the maximum voltage that

can be applied) to electronic components such as the head, motor, and magnets must be observed.

If the maximum time power can be applied (or the maximum voltage that can be applied) is

exceeded, the components mentioned above could overheat and start a fire or begin to smoke.

3. Always include protective circuitry governing the length of time power is applied and the amount of

current that is applied when designing the drive and control circuits for the head, motor, magnets,

etc. If protective circuitry is not included, m***peration of the printer control circuits could cause the

components mentioned above to overheat and begin to smoke or burn.

Notes on Handling

1. The case must be designed so that movable parts such as gears are not exposed. Touching

moving parts could cause a laceration or other injury.

2. The printed circuit board or the control software must be designed so that the auto cutter does not

work while the platen is open.

II I

Confidential

TITLE SHEET

REVISION

NO

NEXT SHEET F

M-T530A/T540A

Specification

(STANDARD)

CONFIDENTIALITY AGREEMENT

BY USING THIS DOCUMENT, YOU AGREE TO ABIDE BY THE TERMS OF THIS AGREEMENT. PLEASE RETURN

THIS DOCUMENT IMMEDIATELY IF YOU DO NOT AGREE TO THESE TERMS.

1. This document contains confidential, proprietary information of Seiko Epson Corporation or its affiliates. You

must keep such information confidential. If the user is a business entity or organization, you must limit

disclosure to your employees, agents, and contractors who have a need to know and who are also bound by

obligations of confidentiality.

2. On the earlier of (a) termination of your relationship with Seiko Epson, or (b) Seiko Epson&＃39;s request, you must

stop using the confidential information. You must then return or destroy the information, as directed by Seiko

Epson.

3. If a court, arbitrator, government agency or the like orders you to disclose any confidential information, you must

immediately notify Seiko Epson. You agree to give Seiko Epson reasonable cooperation and assistance in the

negotiation.
